NiPoGi AM06PRO / KAMRUI AM06PRO – Review


NiPoGi AM06PRO - KAMRUI AM06PRO
NiPoGi AM06PRO – KAMRUI AM06PRO




NiPoGi AM06PRO / KAMRUI AM06PRO

| MiniPC | AMD Ryzen 5 5500U | 512GB SSD | 16GB RAM | 4K 60Hz |



We are reviewing the NiPoGi AM06PRO / KAMRUI AM06PRO, a fully featured miniPC with attractive price.

NiPoGi is a brand specialized in MiniPc with over 10 years of experience and a sibling brand of KAMRUI – both mini computer manufacturers.

To clarify the double name on this review, the NiPoGi AM06PRO and KAMRUI AM06PRO are supposed to be the same product from the sibling brands but named KAMRUI in USA and NiPoGi in most of the rest of the world.

Nonetheless, we are specifically reviewing and testing the NiPoGi AM06PRO, therefore we cannot fully grant that the KAMRUI variant will present the precise same results.

FIND ALL: Earphones Scores Compared



MORE: Headphones Reviews


NiPoGi AM06PRO / KAMRUI AM06PRO Review

Tests & Scores


AF

Advanced Features

The NiPoGi AM06PRO / KAMRUI AM06PRO HCK0401A1U includes advanced features such as:

• 4K 60Hz
• Triple display
• Dual RJ45

gramophone-256605/5

MORE: Editor’s Picks Earphones Chart

MORE: Best Bang for the Buck Earphones


A

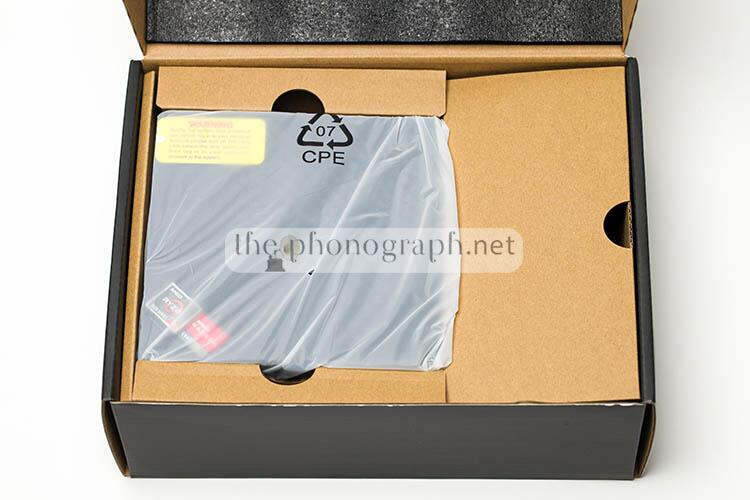

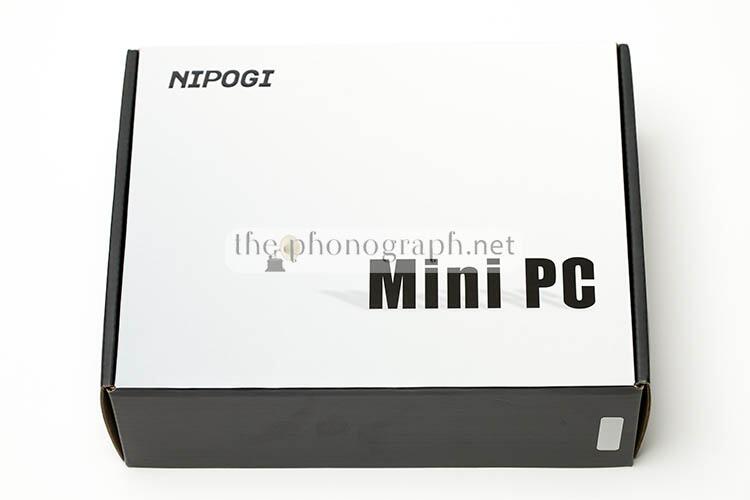

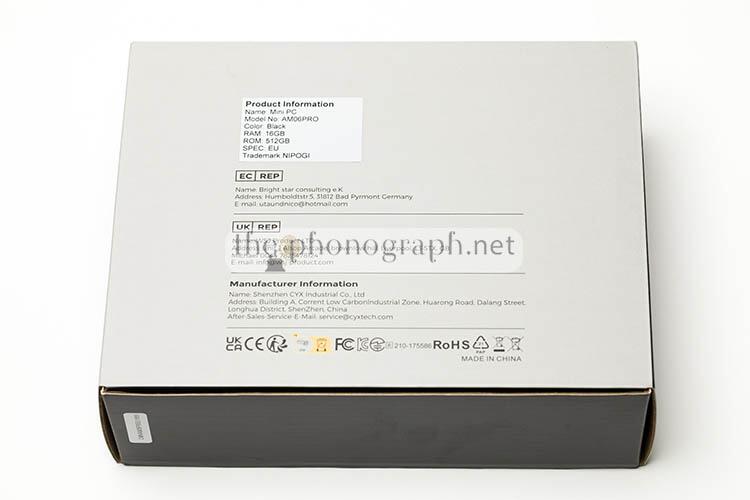

Accessories & Packaging

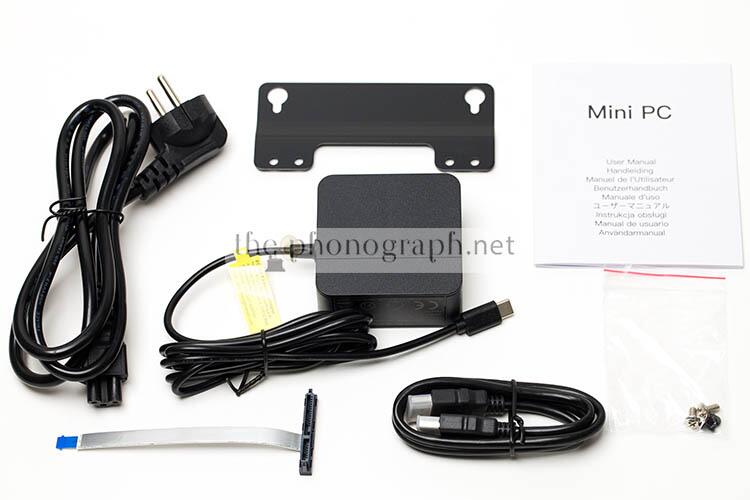

The NiPoGi AM06PRO / KAMRUI AM06PRO unboxing results in:

• 1x USB Type-C data cable
• 1x VESA mount
• 1x HDMI cable
• 1x SATA cable
• 1x Type G PSU

When buying the NiPoGi AM06PRO / KAMRUI AM06PRO you will get all the accessories and cables needed to connect and start utilizing the miniPC.

gramophone-256605/5


D

Design

Both the NiPoGi AM06PRO and the KAMRUI AM06PRO have a tiny rectangular housing with a semi matte finish.

Across the top surface you will notice several sections with a honeycomb pattern design that might seem ventilation grids but they are actually an aesthetic detail, yet the honeycomb-styled bottom panel are actually open and real ventilation ports – the grid on the back panel and all across the edges of the PC are also true ventilation grids.

On the top panel, you will find the only button of the whole PC, the power button. Specifically, the button is placed on the front left corner with a triangular shape and right below the Ryzen and Radeon stickers.

In order to inform the power status of the miniPC, the unit has a strip LED light above the edge of the power button – it will turn and glow in red when the PC is On.

The bottom of the PC has 4 feet with a rubberized finish to keep the unit in place if used standing on a desktop.

Overall, the miniPC has a clean and stylish design with more of a business look than flashy gaming one.

The NiPoGi AM06PRO and the KAMRUI AM06PRO measure: 5.19 x 5.19 x 1.96 inches. As a point of reference, the miniPC is as small as most of the headphones amps that we have reviewed.

gramophone-256604.25/5


TS

Tech & Specs

The NiPoGi AM06PRO / KAMRUI AM06PRO HCK0401A1U has been wisely designed to have a fast and user-friendly operation with a simple button layout.

Despite the small size, the KAMRUI AM06PRO and NiPoGi AM06PRO pack an impressive quality of inner components.

This miniPC model carries inside a 6 cores, 12 threads AMD Ryzen 5 5500U CPU, 16GB of RAM and a 512GB SSD disk.

The AMD Ryzen 5 5500U has a base frequency of 2.10 GHz and a boost capacity of 4041 Hz and is equipped with a 7 cores AMD Radeon integrated GPU with a frequency of 1800 MHz, so no additional graphics card is needed to start using the miniPC – it worth noting that as every integrated GPU, the available memory for it will be shared with the RAM memory.

Specifically, the RAM included on this miniPC is a dual-channel SO-DIMM DDR4 type with a 3200 MHz clock (transfer rate of 3192 MT/s), CL22 1.2V from ASint (Micron), while the disk equipped is a M2 2280 NVME SSD from Airdisk.

On the network department, the unit carries an 802.11ac Dual Band 2.4/5GHz Wi-Fi with WiFi 5 support and backwards compatibility 802.11a/b/g/n.

Moreover, the PC includes Dual Ethernet ports of which one runs at 1 Gigabit and the other at 2.5 Gigabit but with the capability of being combined to connect to 2 networks at the same time, thus improving speed and stability.

Wake On LAN, RTC Wake, and Auto Power On are supported on these MiniPcs.

gramophone-256604.5/5



KAMRUI AM06PRO Coupon

KAMRUI AM06PRO COUPON

$30 OFF Coupon

KAMRUI AM06PRO COUPON

$30 OFF Coupon

CB

Construction & Build

The KAMRUI AM06PRO and NiPoGi AM06PRO have a casing made entirely from plastic, yet the brand has used the right amount and quality of polymer as to make it feel sufficiently sturdy to carry around without fearing of cracking or breaking apart.

Looking at the details of the unit such as the button and the ports, neither show traces of wobbliness and provide a firm plugging and pressing experience.

With a weight of 1.14 kg (2.51 lb) the NiPoGi and Kamrui are very light miniPCs, which combined with the tiny footprint make it a fantastic companion for PC users that travel a lot or to match seamlessly with a minimalistic desktop environment.

In addition to this, with the included VESA support, users will be able to screw and fix the miniPC to the back of any TV and monitor.

gramophone-25660 4/5


C

Connectivity

The ports of the NiPoGi AM06PRO / KAMRUI AM06PRO are placed on the front and back panel of the unit.

On the front panel you can find a 3.5mm audio stereo output jack, 1X integrated microphone, 2x USB 3.0 ports and a USB Type-C that supports data and video – this last port offers a transfer speed rate of 10 GB/s.

The back panel has 7 ports, including: 1x 1G RJ45 (1 Gigabit speed rate), 1x 2.5G RJ45 (2.5 Gigabit speed), 1x HDMI, 1X Display Port, 2x USB 3.0 ports (5 Gigabit/s speed) and a power port with an USB-C connector design.

In addition to this, you will find a Kensington Security Slot to connect a security lock.

gramophone-256605/5


UP

Upgradeability

The NiPoGi AM06PRO / KAMRUI AM06PRO can be easily opened by removing the 4 screws found on the bottom of the unit, right on the center of each rubber foot; after this you can proceed to remove the bottom cover and access the internal components.

The RAM modules of the PC can be easily removed by pressing the corner tabs (system and design identical to any laptop with replaceable RAM); the unit accepts an upgradeable maximum of dual channel 64GB (2 x 32GB), 3200MHz.

The M2 disk can also be replaced and upgraded by any power user by just unscrewing the tightening screw and unplugging it from the connector, the AM06PRO can be upgraded to a max of 2TB with a compatible M.2 NVME 2280 disk.

On top of that, the supplied SATA cable allows the connection of any 2.5-inch HDD or SSD for disk capacity expansion – the cable needs to be connected to and internal white connector found on the mainboard next to the NVME disk.

This additional 2.5´´ disk can then be screwed to the internal section of the bottom cover as there is enough space to fit it; you will have to consider that the added disk will increase the thermal condition inside the case and might stress out the single fan and ventilation system of the miniPC.

gramophone-25660 4/5

Kamrui AM06PRO disassembly
Kamrui AM06PRO disassembly

Per

Performance

Note: If not specified, all tests and benchmarks were done at 4K 60Hz, WiFi On, Bluetooth On and an USB keyboard and USB mouse connected to the unit. No Bios modifications were applied. OS utilized was Windows 11 Professional (bundled with the PC) with no deep customization besides setting the power plan to “High Performance”

In comparison to previous generations, the AMD Ryzen 5 5500U offers a 10% performance improvement from the Ryzen 5 4500U model and a massive 43% over the older AMD Ryzen 5 3750U.

DISK

According to the manufacturer, the internal M2 NVME SSD is rated at 1900MB/s maximum read speed.

Nonetheless and to the very surprise of our team, our benchmarks showed a far faster and impressive speed of 2700MB/s write speed and a whopping 3587MB/s for read speed, which is nearly a 200% performance increase above the declared by the brand.

The 512GB capacity of the SSD will result in an usable formatted capacity of 477GB, of which users will have 438GB free after the complete installation of the bundled Windows 11 Professional.

NOISE

The AM06PRO is so silent that users might wonder if this MiniPC has an active cooling system with a physical fan, as for the more typical everyday tasks like web browsing, Office suite and media playback, the internal fan barely kicks in and is completely inaudible unless it speeds up to max revs – the moment were the fans always turn on at full speed is when pressing the On button and booting.

The fan is smartly placed below the mainboard, facing upwards.

OFFICE, WEB BROWSING and MEDIA

The NiPoGi AM06PRO / KAMRUI AM06PRO showed a snappy and lighting fast response to office, web and media use.

The MiniPC did not show any trace of stress nor lag and a completely instant opening time for all most typical uses and software/apps like: web browsers, Microsoft Office, VLC, Spotify, Windows Mail, Windows Explorer or navigating through any of the Windows UI apps – Chrome, Microsoft Edge, Mozilla Firefox and Opera were equally immediate to open and be ready to be used.

More demanding software like Adobe Creative Cloud programs required at most 4 seconds to open and be ready to be used, while the infamously laggy Steam app took around 6 to 8 seconds to fully open and show a 200+ games library.

GAMING

It is fair to start highlighting that since the integrated GPU has a dedicated memory of just 512MB and shares the additional memory from the RAM modules, the amount of GPU memory request will affect the effective available memory left for RAM use.

The MiniPC has 8.2GB of total GPU memory of which 7.7GB are shared memory.

On legacy and low demanding games at 1080p; for example with a fighting arcade game like “Marvel vs. Capcom: Infinite” (a game released in 2017) set at 1080p and with all quality settings at maximum, the MiniPC was able to maintain 60 fps without any frame drop and with the GPU at 65% of it´s maximum capacity.

On the other hand, when switching to 2K resolution, 60 fps were difficult to achieve and at 4K the game was lagging way too much to be usable and running far below 60 fps. The same unachievable 60 fps was applied to AAA gaming and graphics demanding games.

WiFi, Bluetooth

The dual band WiFi module offered a connection that was always stable with no unexpected disconnections.

The transfer rates of our current internet service were maintained and never throttled nor slowed down when connecting through the AM06PRO.

It is worth highlighting that the MiniPc might tend to prefer connecting to your 2.4GHz band if you do not force it through Windows settings or if your WiFi 5 connection is not strong and stable enough.

The Bluetooth module inside the NiPoGi-Kamrui miniPC is a Bluetooth v4.2 one, which might not be the most modern version out there but for desktop PC use, it´s BT performed very well with good range, no hiccups and fast easy pairing with new devices.

Office and Work PerformanceAAA & 4K Gaming Performance1080p Legacy Gaming Performance
gramophone-256604.75/5gramophone-256602.5/5gramophone-256603.5/5

Overall General Use Performance

gramophone-256604.5/5

RELATED: Best Earphones for Daily Commute

MORE: Most Comfortable In-Ear Headphones


Pow

Power Consumption

The NiPoGi AM06PRO / KAMRUI AM06PRO has a highly energy-efficient AMD laptop series CPU with a TDP of 15W, making it a great choice for users looking to keep under control the electricity bill.

Our measurements of wattage revealed the following consumption in different situations:

Idle: 8.5W to 10.9W

Windows updating: 15W to 25W

Medium intensive use: 15W to 30W

gramophone-256605/5


KAMRUI AM06PRO Coupon

KAMRUI AM06PRO COUPON

$30 OFF Coupon

KAMRUI AM06PRO COUPON

$30 OFF Coupon
SEE ALSO: Coupons – Discounts – Deals – Promo Codes – Sales Deals

B&I

Benchmarks and Detailed Info

According to our measurements, real world testing and measurements results, the bottleneck of the AM06PRO will be the GPU.

In real life use, this bottleneck will only limit the added potential that the PC could have for gaming and 3D applications.

In further detail, their bottlenecks are in the following order: GPU, RAM, CPU and, far away, SSD disk.

CPU

RAM

The ASint RAM modules are set in a dual-channel configuration of 2x 8GB PC-3200 1600MHz running at 3200MHz with the following timings:
CL: 22
tRCD: 22
tRP: 22
tRAS: 52
tRC: 74
CR: 1T

DISK

Motherboard and BIOS

The MiniPC has a HCAR5000-MI mother from HC Technology and an American Megatrends BIOS.

The combination will not affect nor be of any particular interest to most users but some power users might be limited by the options available on the BIOS as it does not extend as deep nor is as customizable as the BIOS of gaming motherboards.

Real Life use

• Boot speed: 3 seconds
• Shutdown: 1 to 2 seconds
• Open Word, Excel, PowerPoint, Outlook from Microsoft Office 2021 Professional Plus: Instant (Less than 1 second)
• Open Microsoft Edge, Mozilla Firefox, Chrome, Opera: Instant (Less than 1 second)
• Open Adobe Photoshop 2023: 3 to 4 seconds
• Open Adobe Photoshop Lightroom Classic: 2 to 3 seconds
• Open Steam: 6 to 8 seconds

GPU


Follow us:



Get the latest reviews on your favorite social network


Scores Scores

NiPoGi AM06PRO / KAMRUI AM06PRO Scores

FIND ALL OUR: Earphones Reviews / In-Ear Headphones Reviews

MORE: Best Earphones Charts


KAMRUI AM06PRO Coupon

KAMRUI AM06PRO COUPON

$30 OFF Coupon

KAMRUI AM06PRO COUPON

$30 OFF Coupon
SEE ALSO: Coupons – Discounts – Deals – Promo Codes – Sales Deals

Specifications

NiPoGi AM06PRO / KAMRUI AM06PRO Technical Specifications

NiPoGi AM06PRO

KAMRUI AM06PRO

WiFi Dual Band 2.4/5GHz

Bluetooth 4.2

CPU

Name

AMD Ryzen 5 5500U

Type

1 Processor, 6 Cores, 12 Threads

Base Frequency

2.10 GHz

Cluster 1

6 Cores

Maximum Frequency

4041 MHz

TDP

15W

Package

Socket FP6

Codename

Lucienne

L1 Instruction Cache

32.0 KB x 6

L1 Data Cache

32.0 KB x 6

L2 Cache

512 KB x 6

L3 Cache

4.00 MB x 2

RAM

Size

16.00 GB

Transfer Rate

3192 MT/s

Type

DDR4 SDRAM

Channels

2

Graphics card

Name

AMD Radeon(TM) Graphics

Compute Units

7

Maximum Frequency

1800 MHz

Device Memory

6.09 GB
